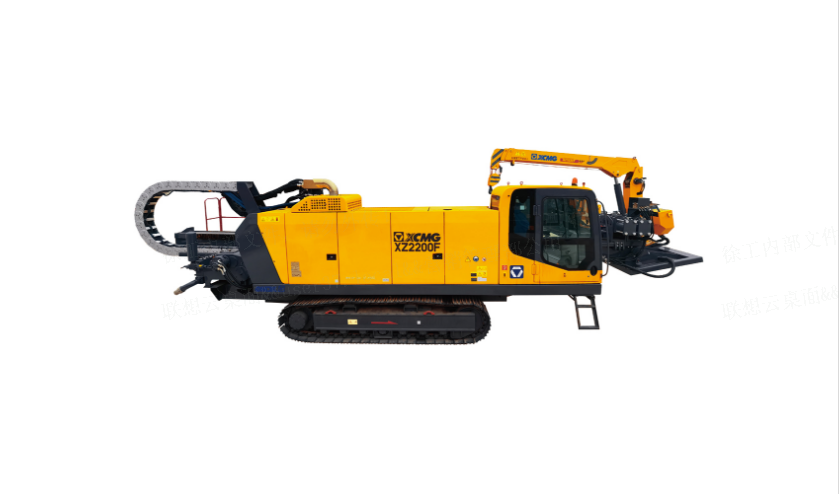

XZ2200F

The medium-tonnage drilling rig can be used in municipal engineering, and can also be used to construct some oil and gas pipelines and in hard rock construction conditions. The medium-tonnage drilling rig is equipped with cab and auxiliary crane as standard.

Product ID: XCMG-MACHINE-XZ2200F-9F901AA4
Equipment Type: Trenchless Machinery
Machine System: Trenchless Machinery
Compatible Brands: XCMG
Main Equipment Series: XZ2200F
Reference Numbers: XCMG-MACHINE-XZ2200F-9F901AA4
Condition: XCMG catalogue item
Availability: RFQ

Ask on WhatsApp Request a Quote

FITMENT

Compatibility & Identification

Reference Numbers: XCMG-MACHINE-XZ2200F-9F901AA4

TECHNICAL DATA

Technical Specifications

Product code	XCMG-MACHINE-XZ2200F-9F901AA4	Product name	XZ2200F
Category	Trenchless Machinery

Item	Unit	Parameter
Engine	/	Cummins
Rated power	kW	2×242
Power head Max. thrust-pull force	kN	2200
Power head Max. thrust-pull speed	m/min	60
Power head Torque	N·m	83000
Power head Max. rotation speed	r/min	115
Mud pump Max. flow	L/min	950
Mud pump Max. pressure	MPa	10
Crane Lifting weight	t	3.2
Crane Lifting moment	t•m	6.4
Recommended drill pipe	mm×m	φ127×6
Max. entry angle	°	16
Max. back reaming diamete	mm	φ1500
Weight	t	33
Outline dimensions	mm	13700×3230×3450
