Product ID · XCMG-MACHINE-XDN2400-R-1D6E0847

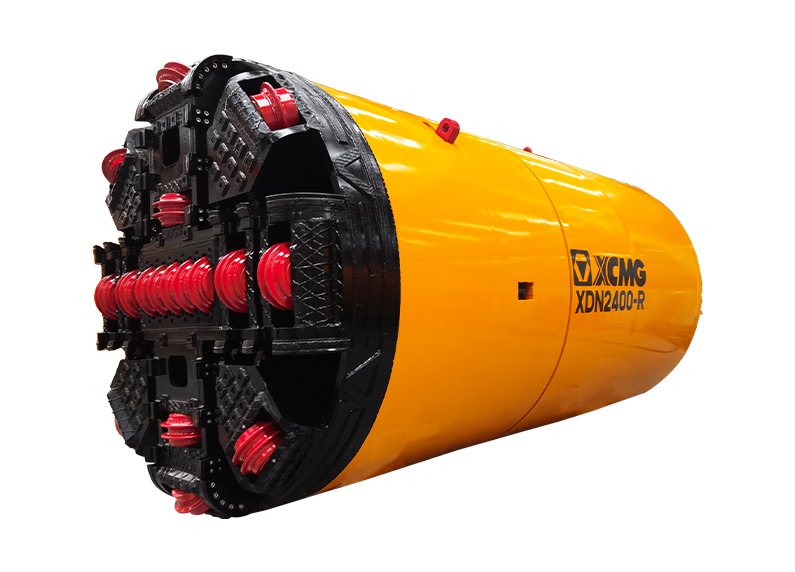

XDN2400-R
1. Electric drive rock pipe jacking machine is mainly suitable for gravel, pebbles, a small amount of boulders and rock strata. 2. The cutterhead has high power and is equipped with a large-torque reduction gearbox, which has strong rock breaking ability. 3. The main jacking has a fine adjustment mode, which can realize millimeter-level accuracy adjustment per minute and meet the construction requirements of extremely hard rock strata. 4. The mud discharge system can realize five mud circulation modes: internal and external circulation, bypass, external water supply and direct drainage, effectively solving the problems of slag deposition and large frictional force of pipeline. 5. It is equipped with a telescopic anti-rotation device to effectively solve the problem of easy rotation of the machine head during construction in rock strata.
- Product ID
- XCMG-MACHINE-XDN2400-R-1D6E0847
- Equipment Type
- Trenchless Machinery
- Machine System
- Trenchless Machinery
- Compatible Brands
- XCMG
- Main Equipment Series
- XDN2400-R
- Reference Numbers
- XCMG-MACHINE-XDN2400-R-1D6E0847
- Condition
- XCMG catalogue item
- Availability
- RFQ
FITMENT
Compatibility & Identification
- Reference Numbers
- XCMG-MACHINE-XDN2400-R-1D6E0847
TECHNICAL DATA
Technical Specifications
| Product code | XCMG-MACHINE-XDN2400-R-1D6E0847 | Product name | XDN2400-R |
|---|---|---|---|
| Category | Trenchless Machinery | ||
| Item | Unit | Parameter |
|---|---|---|
| OD×length | mm | Φ2920x5500 |
| Power | kW | 37x5 |
| Max. torque | kN·m | 933 |
| Max. speed | r/min | 3.8 |
| Steering thrust | t | 150x4 |
| Steering angle | ° | 2.9 |
| Mud pipe diameter | mm | Φ150 |
RFQ CHECKLIST
Before requesting a quotation
- Machine brand and model
- Visible original part number or nameplate
- Front, rear and connector photographs
- Required quantity and destination country
Confirm whether this part fits
Send the machine model, nameplate or photos of the old part and we will help verify it.
