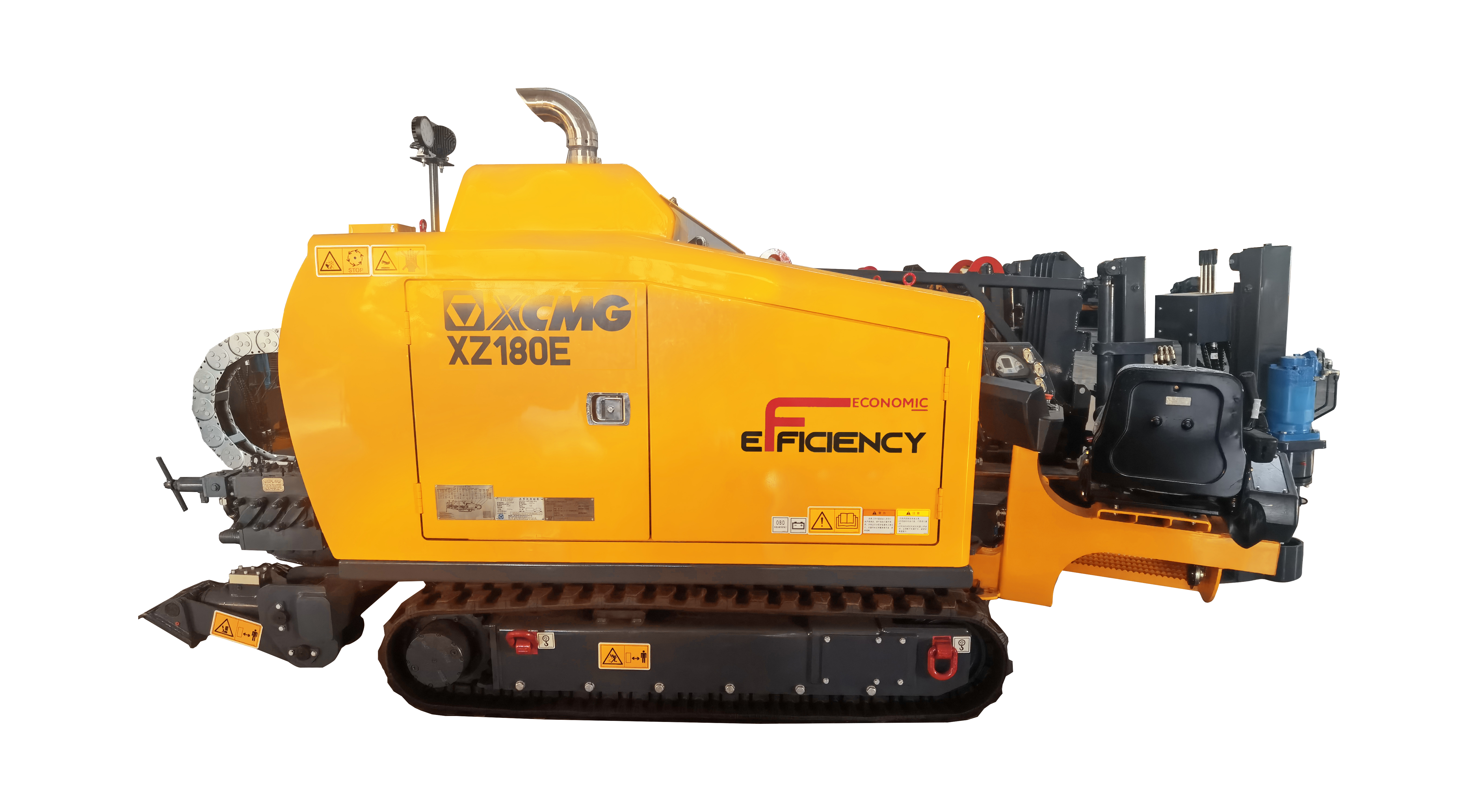

XZ180E

The small tonnage drilling rig is mainly used in the field of municipal pipe network construction. The equipment adopts integrated design, has small size, and is flexible in construction and convenient for transportation. The drilling rig can be equipped with a variety of functional components to meet diverse needs.

Product ID: XCMG-MACHINE-XZ180E-61A133A8
Equipment Type: Trenchless Machinery
Machine System: Trenchless Machinery
Compatible Brands: XCMG
Main Equipment Series: XZ180E
Reference Numbers: XCMG-MACHINE-XZ180E-61A133A8
Condition: XCMG catalogue item
Availability: RFQ

Ask on WhatsApp Request a Quote

FITMENT

Compatibility & Identification

Reference Numbers: XCMG-MACHINE-XZ180E-61A133A8

TECHNICAL DATA

Technical Specifications

Product code	XCMG-MACHINE-XZ180E-61A133A8	Product name	XZ180E
Category	Trenchless Machinery

Item	Unit	Parameter
Engine	/	Cummins
Rated power	kW	96
Power head Max. thrust-pull force	kN	180
Power head Max. thrust-pull speed	m/min	45
Power head Torque	N·m	4600
Power head Max. rotation speed	r/min	200
Mud pump Max. flow	L/min	180
Mud pump Max. pressure	MPa	8
Crane Lifting weight	t	/
Crane Lifting moment	t•m	/
Recommended drill pipe	mm×m	φ60×2
Max. entry angle	°	18
Max. back reaming diamete	mm	φ500
Weight	t	5.5
Outline dimensions	mm	4500×1800×2170
