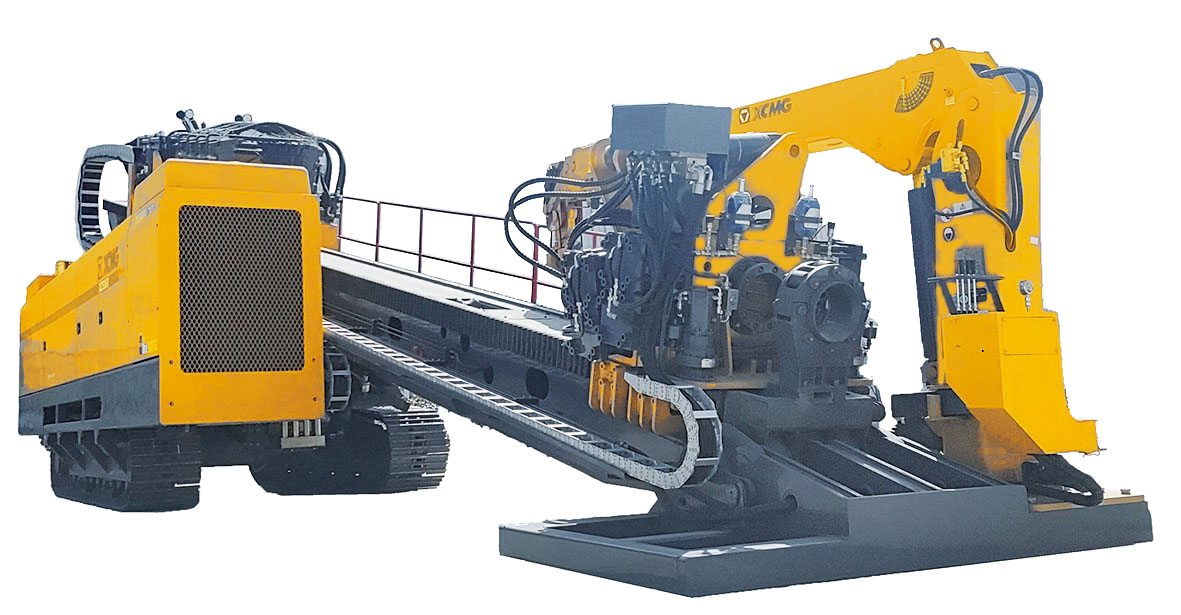

XZ5000F

Large-tonnage drilling rig is mainly used for large-diameter and long-distance pipeline construction.The comprehensive digital display and adjustment of the working parameters of the equipment and the multi-directional automation and intelligent design can provide reliable guarantee for the construction safety. A single engine can be used for construction to save fuel and reduce operating costs.

Product ID: XCMG-MACHINE-XZ5000F-6D3ECBD3
Equipment Type: Trenchless Machinery
Machine System: Trenchless Machinery
Compatible Brands: XCMG
Main Equipment Series: XZ5000F
Reference Numbers: XCMG-MACHINE-XZ5000F-6D3ECBD3
Condition: XCMG catalogue item
Availability: RFQ

Ask on WhatsApp Request a Quote

FITMENT

Compatibility & Identification

Reference Numbers: XCMG-MACHINE-XZ5000F-6D3ECBD3

TECHNICAL DATA

Technical Specifications

Product code	XCMG-MACHINE-XZ5000F-6D3ECBD3	Product name	XZ5000F
Category	Trenchless Machinery

Item	Unit	Parameter
Engine	/	Cummins
Rated power	kW	2×294
Power head Max. thrust-pull force	kN	5000
Power head Max. thrust-pull speed	m/min	35
Power head Torque	N·m	140
Power head Max. rotation speed	r/min	90
Mud pump Max. flow	L/min	Additional
Mud pump Max. pressure	MPa	10
Crane Lifting weight	t	3.2
Crane Lifting moment	t•m	12.5
Recommended drill pipe	mm×m	φ168/φ194×9.6
Max. entry angle	°	16
Max. back reaming diamete	mm	Φ1600
Weight	t	60
Outline dimensions	mm	17500×3200×3650
