Product ID · XCMG-MACHINE-XZ215S-24366044

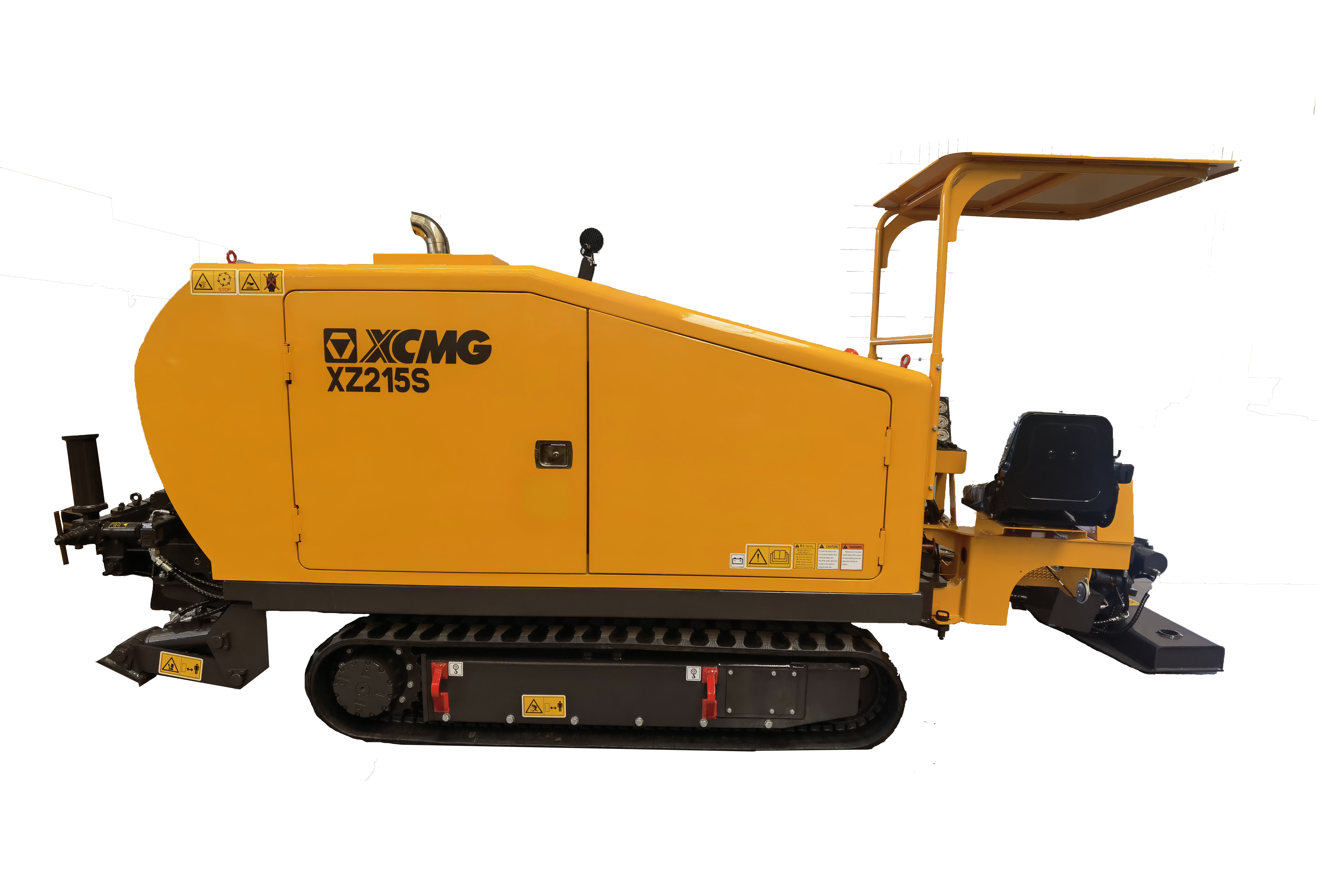

XZ215S
Engine(/): / Rated power(kW): / Power head Max. thrust-pull force(kN): / Contrast
- Product ID
- XCMG-MACHINE-XZ215S-24366044
- Equipment Type
- Trenchless Machinery
- Machine System
- Trenchless Machinery
- Compatible Brands
- XCMG
- Main Equipment Series
- XZ215S
- Reference Numbers
- XCMG-MACHINE-XZ215S-24366044
- Condition
- XCMG catalogue item
- Availability
- RFQ
FITMENT
Compatibility & Identification
Engine(/): / Rated power(kW): / Power head Max. thrust-pull force(kN): / Contrast
- Reference Numbers
- XCMG-MACHINE-XZ215S-24366044
TECHNICAL DATA
Technical Specifications
| Product code | XCMG-MACHINE-XZ215S-24366044 | Product name | XZ215S |
|---|---|---|---|
| Category | Trenchless Machinery | ||
| Item | Unit | Parameter |
|---|---|---|
| Engine | / | / |
| Rated power | kW | / |
| Power head Max. thrust-pull force | kN | / |
| Power head Max. thrust-pull speed | m/min | / |
| Power head Torque | N·m | / |
| Power head Max. rotation speed | r/min | / |
| Mud pump Max. flow | L/min | / |
| Mud pump Max. pressure | MPa | / |
| Crane Lifting weight | t | / |
| Crane Lifting moment | t•m | / |
| Recommended drill pipe | mm×m | / |
| Max. entry angle | ° | / |
| Max. back reaming diamete | mm | / |
| Weight | t | / |
| Outline dimensions | mm | / |
| Engine Power | kW | 110 |
| Engine Model | 一 | 6BT5.9-C150 |
| Max.Thrust-pull Force | kN | 215 |
| Max.Thrust-pull Speed | m/min | 60 |
| Max.Torque | N ·m | 6500 |
| Max.Rotation Speed | r/min | 230 |
| Max.Mud Flow | L/min | 250 |
| Max.Mud Pressure | MPa | 8 |
| Drill Pipe | mm×m | φ60×3 |
| Max.EntryAngle | 一 | 12-20 |
| Max.Reaming Diameter | mm | 600 |
| Weight | kg | 8000 |
| Dimensions（L×W×H） | mm | 6500×2200×2200 |
RFQ CHECKLIST
Before requesting a quotation
- Machine brand and model
- Visible original part number or nameplate
- Front, rear and connector photographs
- Required quantity and destination country
Confirm whether this part fits
Send the machine model, nameplate or photos of the old part and we will help verify it.
